Peanut butter grinding machine/peanut butter colloid mill

peanut butter grinding machine
peanut butter grinding machine
peanut butter grinding machine

Product Introduction of Peanut Butter Grinding Machine

Peanut butter grinding machine is a piece of equipment widely used in the food industry, chemical industry, daily chemistry, pharmaceutical industry and construction industry. It can be applied in crushing, emulsifying, and comminuting.Peanut butter grinder machine consists of a 130-type stainless steel, semi-stainless steel and semi-steel colloid mill, which is a device for the fine grinding of fluid and semi-fluid materials.

chili tomato peanut butter
tomato peanut butter

Our company has taken advanced technology and made horizontal peanut grinder machines. The rotation speed of the peanut grinder can be switched. So it does well in processing a wide range of grains, such as aloe, pineapple, sesame, ice cream, moon cake stuffing, butter, jam, fruit juice, soybean, bean milk, protein, soy milk, dairy products, hose, essence, all kinds of beverages, etc.

We provide customers two types of peanut butter grinding machine. They are peanut butter colloid mill and stone grinding machine. Peanut grinding machine is cheap but of high-quality. Our peanut grinders are popular among peanut butter making plant, individual peanut butter merchant as well as farmers farming peanuts. Horizontal milling machines(grinding mill machine) are exported to countries around the world, such as Philippines, India, Kenya and South Africa.

Working Principle of Peanut Butter Grinder Machine

peanut colliod mill
peanut butter colloid mill

The colloid mill involves in shearing, grinding and mixing at pretty high speed. When the electric motor begins, it drives the whole grinder. Then workers feed raw materials(raw peanuts) in forms of fluid or semi-fluid into the hopper. There are two grinding discs inside the machine. Of them two, one rotates at high speed while the other at rest. When stator and rotor move relatively at high speed, crops flow into space between them and are crushed. Due to high-frequency vibration and high-speed vortex and other complex forces, materials can be effectively ground, emulsified, pulverized, dispersed and homogenized.

There are three grinding zones in the crushing chamber. The first is the coarse grinding zone, the second the fine grinding zone, and the third the ultra-fine grinding zone. By adjusting the gap of the stator and rotor, it is possible to achieve the required ultra-fine crushing (also can be cycled) at one time.

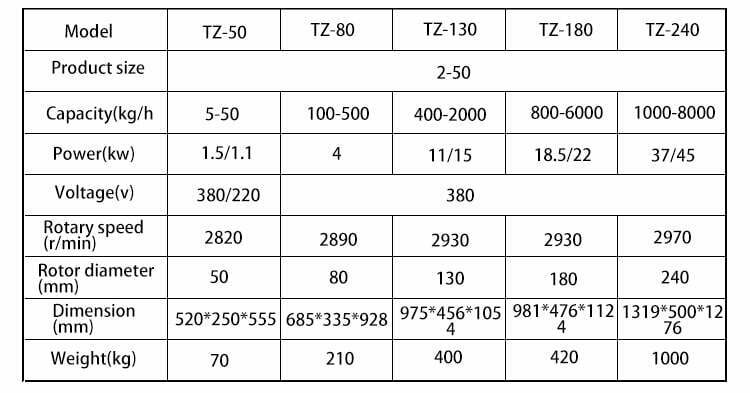

Technical Parameter of Peanut Butter Colloid Mill

Technical Parameter of Colloid Mill

Technical Parameter
Technical Parameter

Structural Features of Peanut Butter Colloid Mill

The Structure of Collid Mill

Stock Display

Collid mill                                  Stone mill

Types Display

peanut butter colloid mill
peanut butter making machine

Useage Method of Peanut Butter Grinding Machine

1. Install device on the flate concrete foundation and fix with the foot screw(Fixed or not depends on working condition)

2. Check whether all the fastening screws are tightened.

3. Before use, turn the rotator with specific lever and check whether it connects with the stator and is stuck or not. If so, don’t turn on the machine.

4. Check and connect power cord(three-phrase ALTERNATING current, 380 Volts, grounding protection of the body)

peanut colloid mill
peanut butter grinding machine

5. Make sure that the moving direction of rotor is consistent with the base arrow(clockwise rotation)

6. Connect cooling water and pay attention to the inlet and outlet water mark of the nozzle.

7. Before starting the motor, first to inch the switch and check whether there is noise and vibration or not. If so, stop the machine and troubleshoot.

8. Fill butter cup with oil regularly.

9. Requirement for raw materials

A: Only wet processing. No dry solid materials are availiable.

B: Clean debris in any form before grinding.

Hard objects such as broken glasses, iron, metal shavings and gravel particles are strictly prohibited from entering the grinder to prevent damage to the machine.In the event of abnormal operation should immediately stop, check reasons, and troubleshoot.

10. In the event of abnormal operation should immediately stop, check reasons, and troubleshoot.

11. Clean residuals in stator and rotor after use while machine working.

12. After Or No use in short term, clean inner cavity throughly and best to use high pressure air drying in case of errosion.

13. When unpacking and installing, be careful about seals damages, wrong installtion and loss.

Speciality of Peanut Butter Grinding Machine

peanut butter colloid mill
peanut butter colloid mill

High grinding hardness, high productivity, and high precision

Advanced dynamic seal design, durable and fine grinding, easy to operate, and easy to maintain and repair

All-round services, quality guarantee, and long service life

If you are interested in peanut grinding machine, please leave a message on our page and contact with us. We’ll contact with you to send more details and quotation as soon as possible.
