Peanut Butter Mixing Tank Introduction

Peanut butter mixing tank
Peanut Butter Mixing Tank

The mixing tank is a piece of equipment used for blending, heating, emulsifying, and mixing raw materials in the industry. The making material is stainless steel. In the process of stirring and mixing, the control of feeding and output quantity can be realized. The technical design is standardized and humanized. Its use has extended to many other fields and industries. The mixing machine is universally applied in the coating industry, pharmaceutical, medicine industry, architectural industry, chemical industry, and scientific and industry. The electric mixing tank is often used in peanut butter production line.

Technical Parameter of Peanut Butter Mixing Tank

Storage, mixing, vacumm tank
Storage, Mixing, Vacumm Tank

1.Capacity :50-2000L

2.Single layer/ double layers

3.Motor power:0.75-5.5kw

4.Materials are all sanitary stainless steel .

5.Humanized structure design and easy to operate .

6.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation .

Capacity(L)Inside Bowl Diameter(mm)Electric Motor(n/kw)Stirring Speed(r.p.m)
505000.7560-100
1005501.160-100
2006502.260-100
3008002.260-100
500900360-100
8001100460-100
10001200460-100
150013005.560-100
200014007.560-100
technical parameter

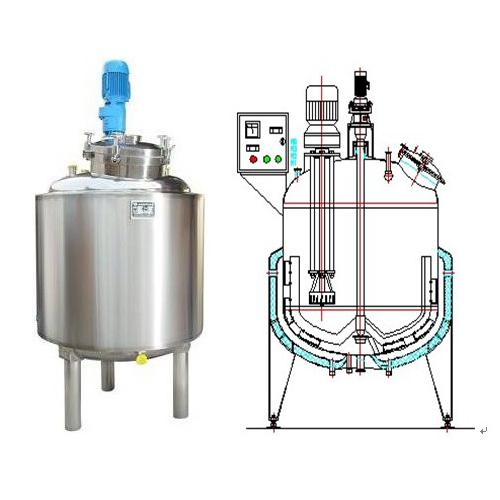

Structural Features of Peanut Butter Mixing Tank

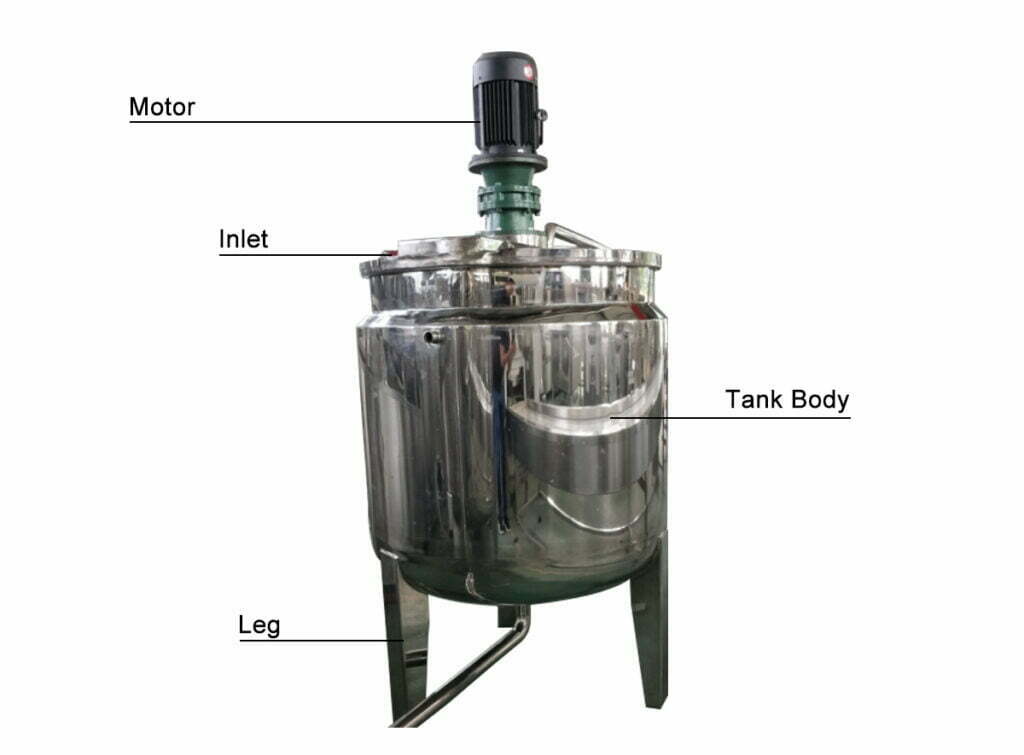

The mixing tank is composed of a mixing tank body, mixing tank cover, agitator, support, transmission device, shaft seal device, etc. Generally, there are anchor type, paddle type, turbine type, propulsion type or frame type, etc. when the height diameter ratio of the mixing device is large, multi-layer mixing blades can be used, or optional according to the requirements of users. The jacket is set outside the kettle wall, or the heat exchange surface is set in the reactor, and the heat transfer can be carried out by external circulation.

Manhole cover

materials inlet

Paddle agitators

Paddle agitators are used where an uniform laminar flow of liquids is desired.

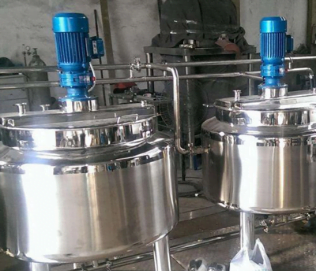

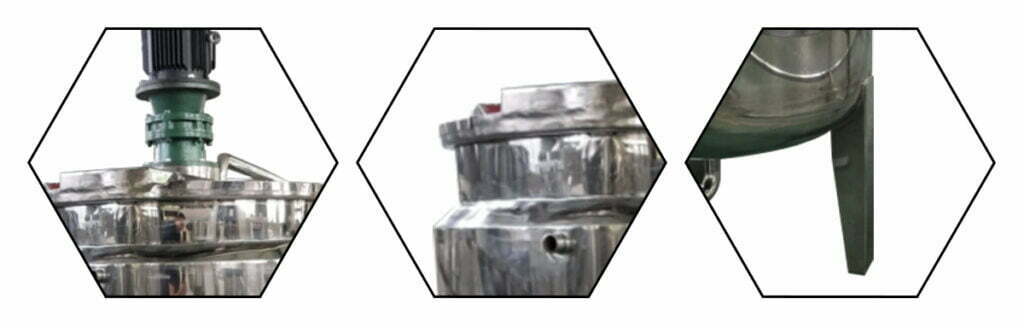

Details of peanut butter mixing tank
Details Of Peanut Butter Mixing Tank

Types of Agitators

Types of agitators
Types Of Agitators

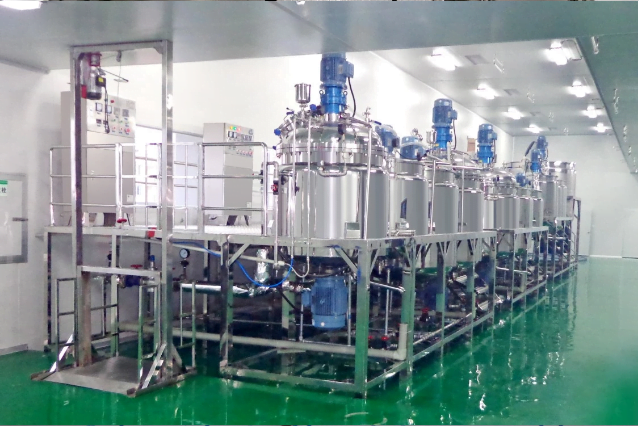

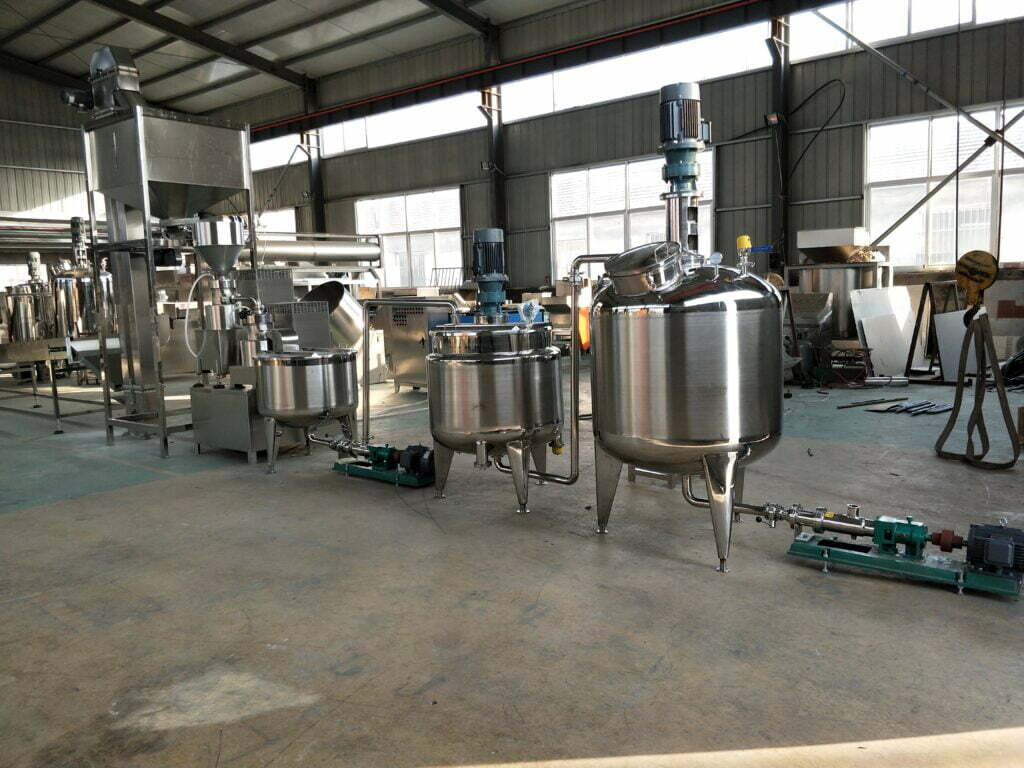

Paste Mixing Tank Display

Application for Peanut Butter Mixer Tank

Advantages of Electric Heating Peanut Butter Mixing Tank

  1. Mixing and heating uniformly to keep the quality of peanut butter.
  2. Convenient to operate and time-saving.
  3. Performing dynamic balance testing to improve working safety.
  4. No noise, no pollution, no waste.
  1. Materials are all sanitary stainless steel.
  2. Humanized structure design and easy to operate.
  3. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation
